Coaxial Profile Projector Coaxial Profile Projector Coaxial Profile Projector Coaxial Profile Projector

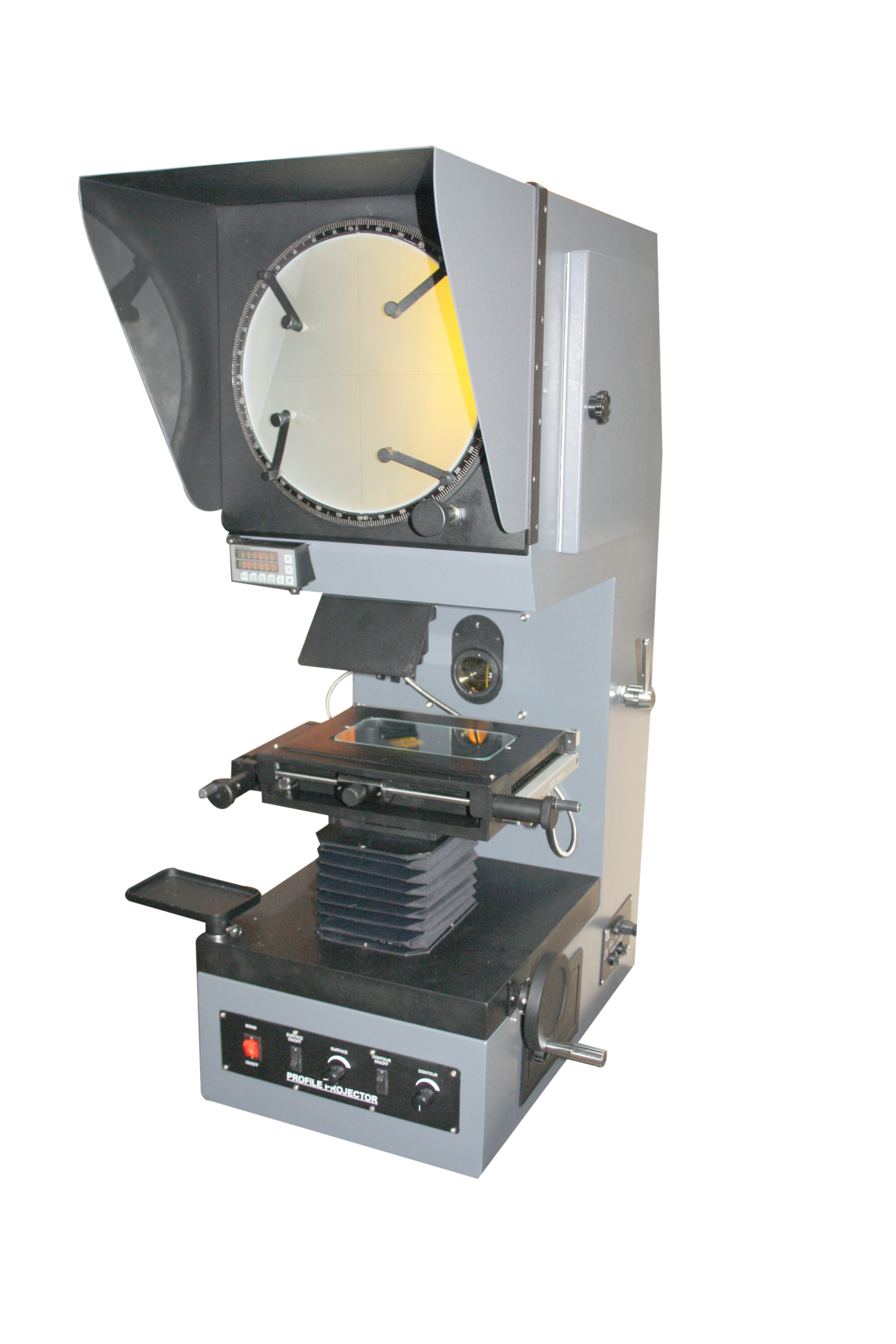

Coaxial Profile Projector

3450 INR
Get a Price/Quote

Product Details:

  • Use Other
  • Portable No
  • Brightness Adjustable ISO
  • Resolution 0.01mm
  • Projection Distance NA Millimeter (mm)
  • Lamp LED/Halogen
  • Lens 300 mm Diameter Screen
  • Click to view more
Request To Call Back Send Inquiry
X

Coaxial Profile Projector Price And Quantity

  • 3450 INR
  • 1 Unit

Coaxial Profile Projector Product Specifications

  • Input Voltage 220 Volt (v)
  • Adjustable ISO
  • NA
  • NA Millimeter (mm)
  • NA
  • LED/Halogen
  • Other
  • No
  • 300 mm Diameter Screen
  • 0.01mm
  • 150 Watt (w)
  • Coaxial Light

Coaxial Profile Projector Trade Information

  • NA
  • Cash in Advance (CID)
  • 5 Unit Per Week
  • 30 Days
  • Exports Worthy Cartons
  • All India
  • Certificates ISO 13485, ISO 9001, ISO 14001, ISO 9022-1, CE

Product Description

 Other Details:

  • Coaxial Surface Illumination: An illumination method whereby a workpiece is illuminated by light transmitted through the objective lens for the observation / measurement of the surface.
  • Profile Projector with Coaxial surface illumination are used, where the prime observation/measurement requirement are of surface deep cavity etc.
  • All other specification are as per Model RPP-3000.
  • Screen Antiglare hard glass screen, graduated & rotatable through 360 deg having least count 1 minute of an arc.
  • Mirrors Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
  • EPI-Illumination A Specially designed LED or 12V 100W halogen light ensures uniform surface illumination system for the above.
  • Electrical Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
  • Illumination Projection Light Source with 24V  150W Halogen Lamp. Double Oblique Light Source for Surface Illumination.

Enter Buying Requirement Details

Other Products in 'Profile Projector' category

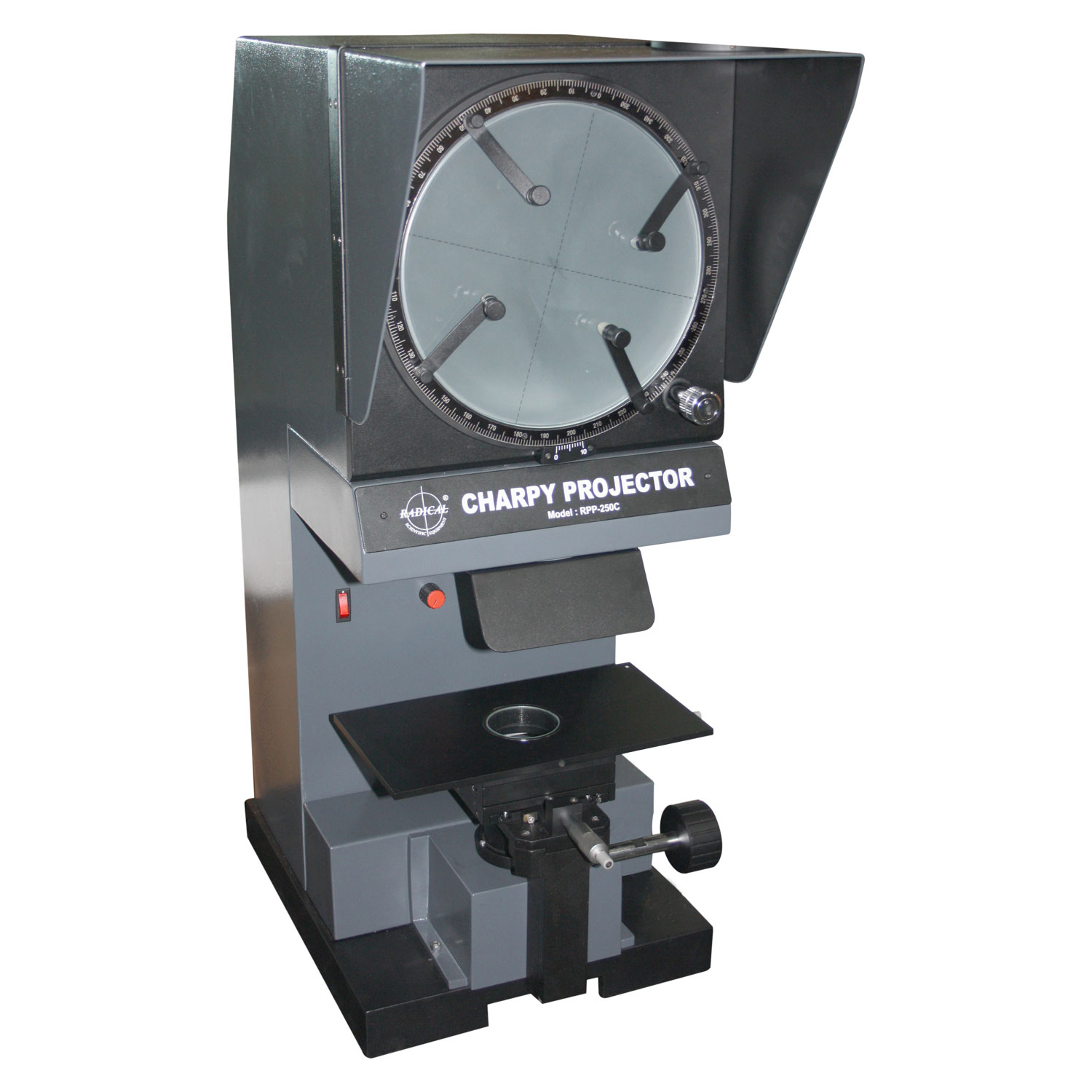

Charpy Profile Projector
